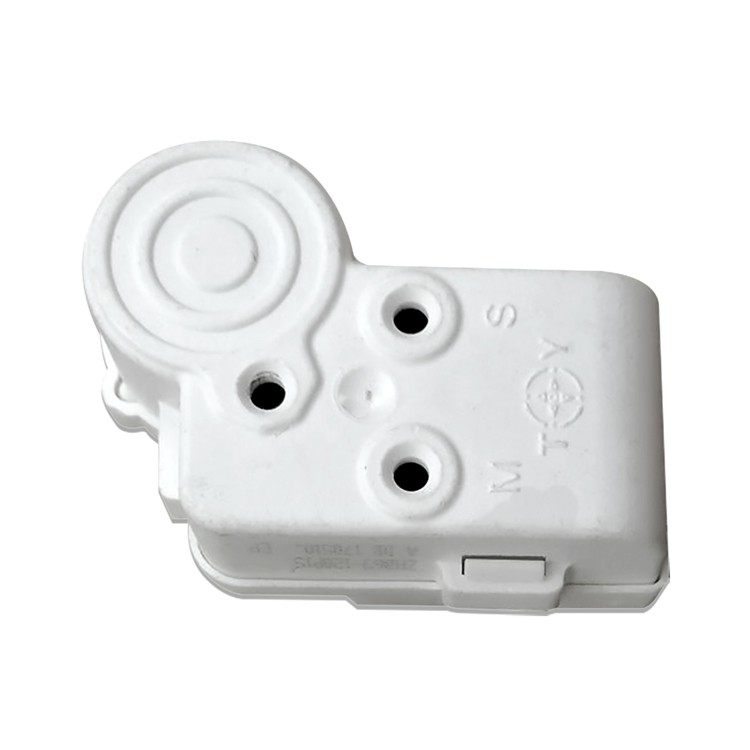

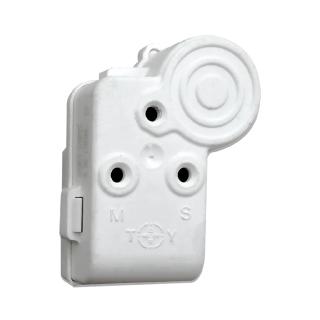

4. 4 repair refrigerating cycle and overload relay. 5 defective compressor. 5. Whirlpool Refrigerator Compressor Overload/Relay Kit: Fortunately I had the wiring diagram of my fridge (that came with it) in a bin on the door of. Overload Relay Combination - Whirlpool WP - This part is both the start relay and the overload. How To Tell If the Refrigerator Start Relay Is Bad. ... When the start relay turns the compressor on, ... When in doubt about what to do, refer to the user manual to find the start relay wiring diagram as well as its location in your model of fridge. Replacing the unit is pretty simple. Just unplug the bad component and swap in the new one. When the start relay fails to activate, the compressor does not start. Compressor start relay ( 47 ) this compressor start relay is responsible for maintaining the freezer's temperature by supplying power to the compressor, essentially acting as the on and off switch for the compressor. Refrigerator start relay wiring diagram.

Refrigerator compressor relay wiring diagram. The compressor turns on and off periodically for an effective cooling process, and for this very reason, a relay is used to assist the compressor while functioning. Relay is an electrical switch that tells your compressor to turn on or off depending on the temperature inside the unit. If the relay stops working, the compressor will also stop. Remove the relay box from the refrigerator completely. Step 5 Examine the wiring diagram on the compressor unit. The diagram will display which terminals on the compressor have positive, negative and neutral charges. Step 6 Grasp the 3 'n 1 relay box, and locate the five wires protruding from it. There are three color-coded wire plugs (red ... To replace it, simply detach the electrical connectors from the overload relay and remove them from the compressor. Replace the relay system box cover and the cover plate at the back of the refrigerator. Check out replacement start relays on amazon. Replacing a refrigerator compressor is certainly not a walk in the park! The compressor you decide to purchase may either be new or reconditioned. How to replace the compressor on a kitchenaid refrigerator. 30 Unique Refrigerator Start Relay Wiring Diagram- A Control Relay Is Used In The Automotive Industry To Restrict An Air Conditioner Maintenance Relay Diagram

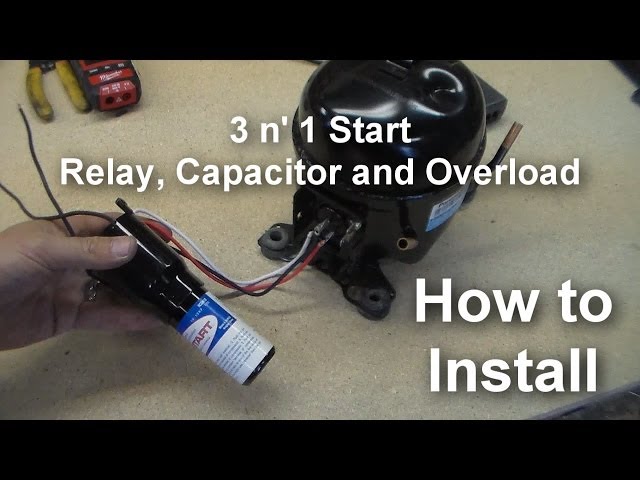

the wire diagram that is on the 3n1 universal start relay. After you have the new start relay on plug the refrigerator in and the compressor should start running. If the compressor does not start and the new relay starts to make a clicking sound like the old relay you may have something wired wrong or the compressor may need to be replaced. 50 Best Of Compressor Start Relay Wiring Diagram- A control relay is used in the automotive industry to restrict and alter the flow of electricity to various electrical parts inside the automobile. They allow a small circuit to rule a future flow circuit using an electromagnet to manage the flow of electricity inside the circuit. For posterity, I figured out this is a special four wire compressor. The three other wires are for a protection device. Attached below is a diagram of how it wired, the upper one is original, the lower schematic shows how to wire a supco ro41 start relay. Fridge works good now. Read Book E39 Ac Compressor Relay Diagram E39 Ac Compressor Relay Diagram When somebody should go to the ebook stores, search introduction by shop, shelf by shelf, it is essentially problematic. This is why we present the books compilations in this website. It will utterly ease you to look guide e39 ac compressor relay diagram as you such as.

According to previous, the traces in a Refrigerator Start Relay Wiring Diagram represents wires. Occasionally, the wires will cross. However, it does not imply connection between the wires. Injunction of two wires is usually indicated by black dot at the intersection of 2 lines. The wire diagram that is on the 3n1 universal start relay. 5% coupon applied at checkout. New w10613606 refrigerator compressor start relay overload & capacitor kit. This part has been replaced by the manufacturer. Fractional Compressor Wiring: Simplifying The Wiring Of A Light - Refrigerator Start Relay Wiring Diagram. Wiring Diagram consists of the two illustrations and step-by-step instructions that might permit you to definitely actually construct your venture. This can be useful for both the people and for experts who're looking to find out more ... But if the start relay has severe damage, you won't hear it at all. 2. Clicking Noise. Just like you can hear a compressor's hum, you can also hear a single-clicking noise when the start relay turns on the compressor. However, if your start relay is malfunctioning, it isn't succeeding in turning the compressor on every time.

Refrigerator Current Relay - Refrigerator Troubleshooting Diagram

A wiring diagram is a streamlined standard pictorial depiction of an electric circuit. It shows the components of the circuit as streamlined shapes and the power as well as signal connections in between the gadgets. True Freezer Wiring Diagram Efcaviation Com Throughout Refrigeration Model T Diagram Electrical Wiring Diagram To reference wiring diagram remove front …

Refrigerator Overload Protector Testing Using Multimeter

The old compressor terminals where common pin on top start pin bottom left and run pin bottom right. Wiring diagram includes many comprehensive illustrations that present the connection of various things. The condensing fan wires are in parallel to the refrigerator wires.

Maintenance and Repair Refrigator: Installation diagram ...

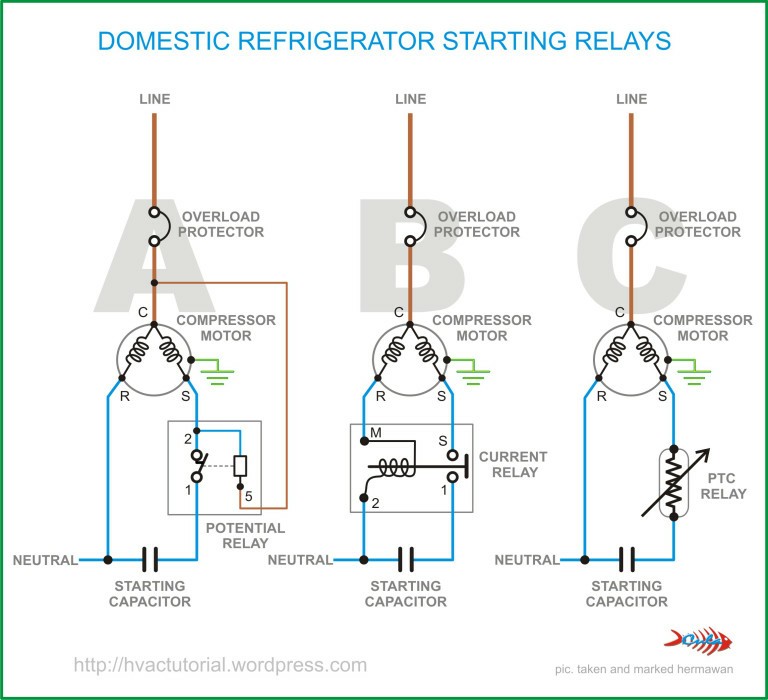

Refrigerator start relay wiring diagram. It is responsible for powering the start winding for a brief moment to help start up the fridge compressor. Whirlpool refrigerator diagram fridge wiring diagram fridge wiring. Wiring diagram installation instructions printed on package.

Do you need help on the installation? Learn with Embraco ...

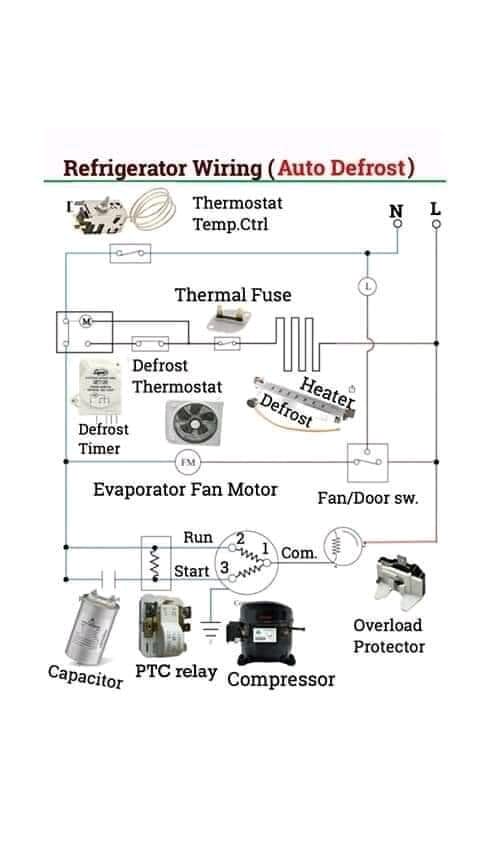

Wiring Diagram Of A Refrigerator - Wiring Diagram Data - Refrigerator Compressor Wiring Diagram. Wiring diagram also gives useful suggestions for projects which may require some extra equipment. This guide even contains suggestions for additional provides that you might require to be able to finish your projects.
